Bistos BT-330 Fetal Monitors

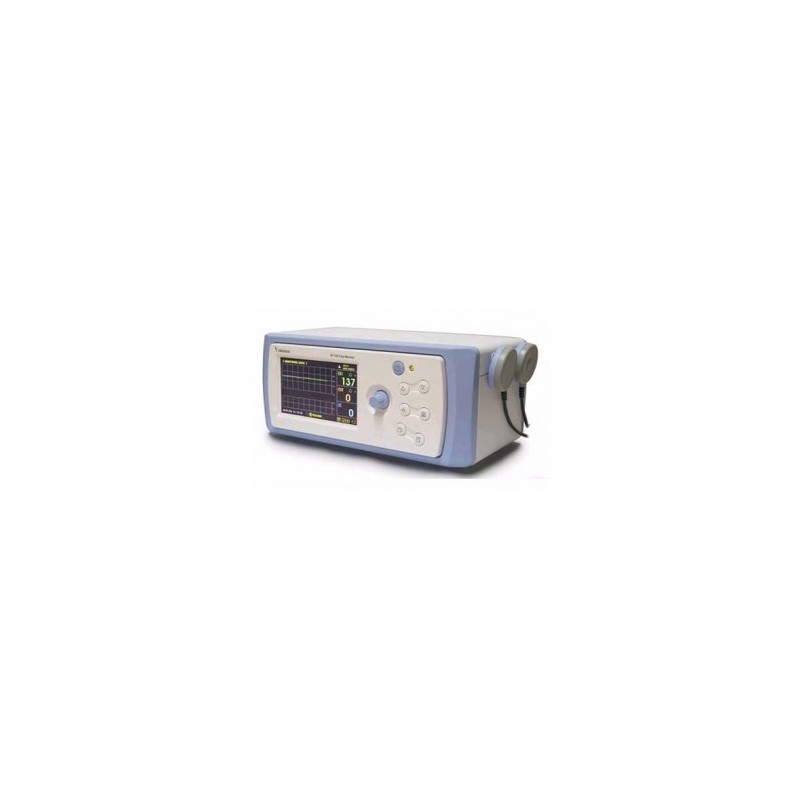

BT-330 is a Antepartum Fetal Monitor displaying FHR, UC, and FM on LCD Monitor to check fetal health after measuring them.
It has also Event market function enabling a pregnant woman in childbed to indecate fetal movement point by pushing its button by herself When she feels fetal movement.

BT-330 indicated FHR as numeral by irradiation ultasound at the adbomen, abstraching doppler frequency of heart beat cycle from the signals reflected from fetal heart, outputting FHR change as a sound, and analyzing these signals.
Besides, you can measure UC by using pressure sensor, indicate, and print the data of HFR and UC.

- Twin fetuses Measurement
- Automatic fetal movement Measurement
- Alarm & Timer
- Printing speed and color depth control functions
- Automatic printing & Zoom
- Wide Range of FHR measurement : 30~ 240 bpm
- Simultaneous display through printer & LCD monitor
- Data save
- FHR Sound save in PC by BCM 330 Software

Features

● Wire & Wiresess external interface for central monitoring system

Specification

• FHR
  ● Dual Pulsed Doppler
  ● Ultrasound Frequency : 0.984MHz
  ● Intensity : 10 mW/cm2 or less
  ● FHR Range : 30 ~ 240 bpm
  ● FHR Accuracy : +_2% of Range
• FM : Auto-detection of Dual Fetal Movement
• UC :
  ● External Type
  ● Frequency Response : DC ~ 0.5 Hz
  ● Reference (zero) Contral Measurement Range : 0 ~ 99 units
• Printer
  ● Thermal Array Type - Print Speed : 1, 2, 3 cm/min, high speed
  - Auto Record Period : Off, 10, 20, 30, 40, 50, 60min
  - Paper Feeding Function
• Display
  ● 7'' Wide TFT-Color LCD : 800(W) X 480(H)
  ● 3Channels (FHR I, FHR II, UC)
• Sound
  ● Doppler Sound
  ● Alarm Sound
  ● Information Sound
• Set-up
  ● Alarm Upper / Lower Value, Time & Date
  ● Print Speed
  ● Trend [Data Saving for 450 hours(3hr/Person)] , Name ID
• Function
  ● Mark Function
  ● Display/Printer Zoom-in Function
  ● FHR II Offset Function(DOP II+20bpm)
  ● Auto Print Function
  ● Heart Sound Recording in BCM300
  ● Ultrasound Gel 1ea
  ● Probe Belt 3ea
  ● Operation Manual 1ea
  ● AST(Acounstic Stimulator) 1ea(Option)
• Power
  ● Input : AC 100 ~ 240V (50/60 Hz)
  ● Output : DC 16V, 2.8A
  ● Consumption Battery Operation : continuously 2 hours
• Dimension : 191mm(H) X 187mm(L) X 201mm(D)
• External Link :
  ● Wire : RS-232C
  ● Wireless : Bluetooth
• Standard Accessory
  ● Ultrasound Dopper Probe 2ea
  ● UC Probe 1ea
  ● Event Marker 1ea
  ● Print Paper 2ea
  ● Power Cord 1ea
  ● Ultrasound Gel 1ea
  ● Probe Belt 3ea
  ● Operation Manual 1ea
  ● AST(Acounstic Stimulator) 1ea(Option)
• Warranty
  ● 2 Years (probe excluded)
